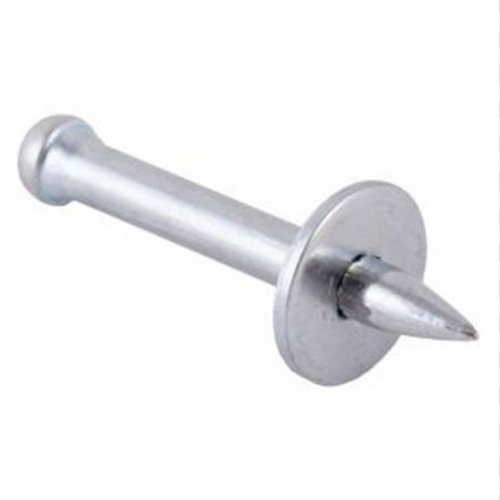

NK Drive Pin Concrete Pin

Our Drive Pins are used for the direct fastening and fixing in Dry Wall, Concrete and Steel Beams. We have great advantages of the best quality, competitive prices and excellent technical services. CEDAR brand Drive Pins are the best seller and most relia
Add to Inquiry
Description
Our Drive Pins are used for the direct fastening and fixing in Dry Wall, Concrete and Steel Beams. We have great advantages of the best quality, competitive prices and excellent technical services. CEDAR brand Drive Pins are the best seller and most reliable products, in Asian Drive Pins suppliers. Welcome your visit to CEDAR and establish our long-term cooperation.
CEDAR powder actuated fasteners are specifically fabricated to meet the exacting requirements of toughness and durability that enable them to penetrate dense concrete and structural quality steel. All CEDAR fasteners with .300 head will fit into tools with 8mm barrels.


NK Drive Pin



Model Shank Length Diameter
Head Shank Metal Washer
NK22S12 22mm 5.7mm 3.7mm 12mm
NK27S12 27mm
NK32S12 32mm
NK37S12 37mm
NK42S12 42mm
NK47S12 47mm
NK52S12 52mm
NK62S12 62mm
NK72S12 72mm
NK82S12 82mm

 Product Description
Material: #1060 Steel       Head Dia:    6mm
Length: 22-mm    Shank Dia:    3.7mm
Washer Dia: 12mm    HRC:    52-56
Shoot Test: Penetrate 8-9 mm A3 Steel Plate   Application:    Conduits, Steel Parts,doors

Features:
  • Material coating/plating/finish: Galvanized zinc coating (5-13 µm)
  • Application Base materials: Concrete, Steel
  • Packing Quantity: 100 pcs / box, 5000 pcs / master carton

CEDAR powder actuated fasteners are specifically fabricated to meet the exacting requirements of toughness and durability that enable them to penetrate dense concrete and structural quality steel.

All NCEDAR fasteners with .300 head will fit into tools with 8mm barrels.

We maintain only the highest standards in the materials, production techniques and quality control measures used to manufacture our fasteners, assuring consistent, optimum quality in every fastener.

CEDAR Drive Pins can be used for the powder actuated tools and gas actuated tools of POWERS®,  RAMSET®,  HILTI®,  SIMPSON®  and  BLUE POINT FASTENERS®.

NK32 WITH 12MM STEEL WASHER DRIVE PINS FOR 450 NAIL GUN

Head Dia:6.0mm
Shank Dia:3.7mm
Metal Washer E=Knurled Shank
Model Length KG/100PCS   Model Length KG/100PCS
ENK16S12 5/8"K 0.28   NK52S12 2" 0.58
ENK19S12 3/4"K 0.30   NK54S12 2-1/8" 0.61
ENK22S12 7/8"K 0.33   NK57S12 2-1/4" 0.62
NK22S12 7/8" 0.33   NK62S12 2-1/2" 0.65
NK27S12 1" 0.37   NK72S12 2-7/8 0.75
NK32S12 1-1/4" 0.41   NK76S12 3" 0.80
NK37S12 1-1/2" 0.46   NK82S12 3-1/4" 0.84
NK42S12 1-5/8" 0.49   NK92S12 3-5/8" 0.93
NK47S12 1-7/8" 0.54   NK97S12 3-7/8" 0.97
